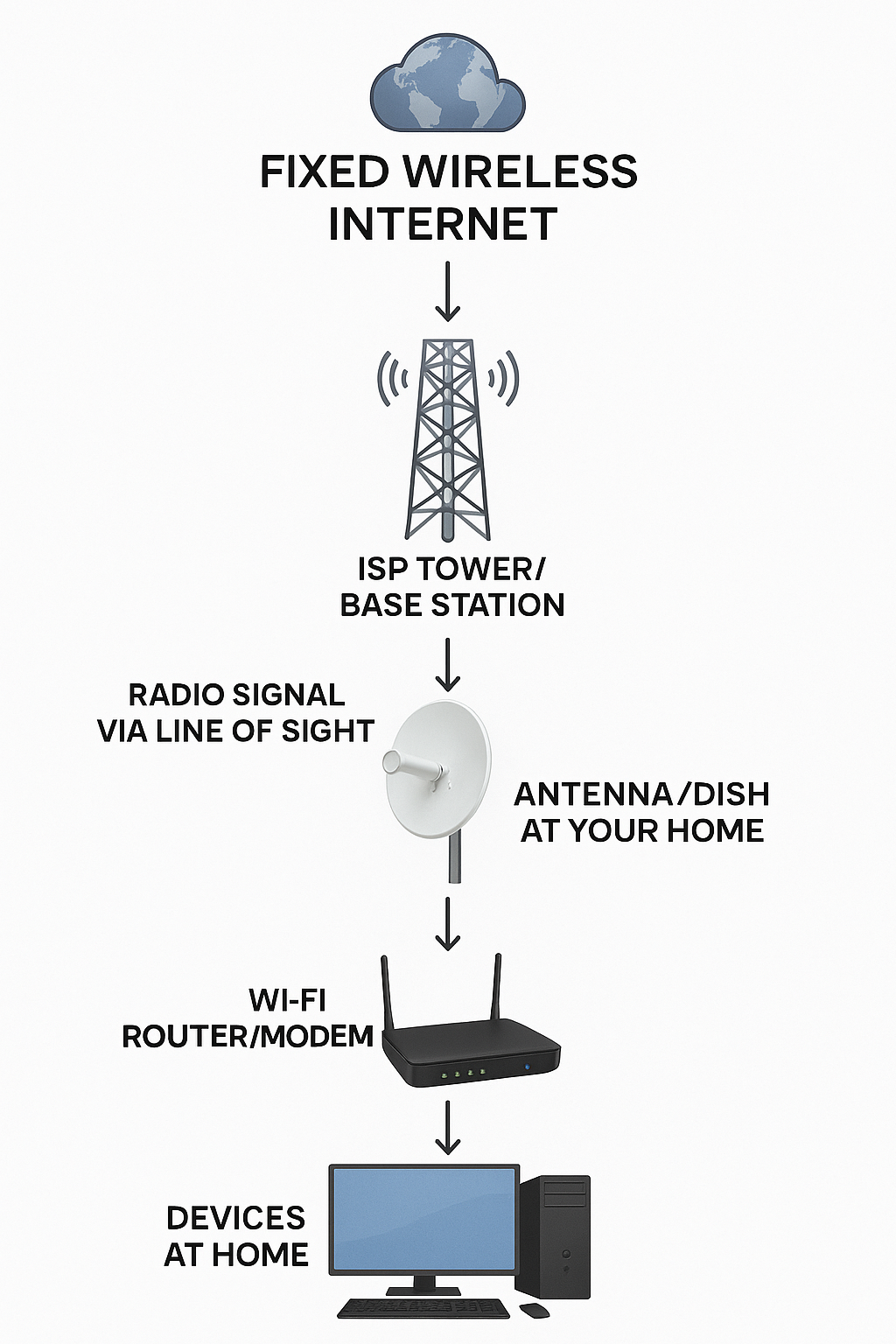

                                             What Is Fixed Wireless Internet?

Fixed wireless internet is a type of broadband internet that uses radio signals to connect a home or business to a nearby cell tower or base station, rather than using cables like fiber or DSL.

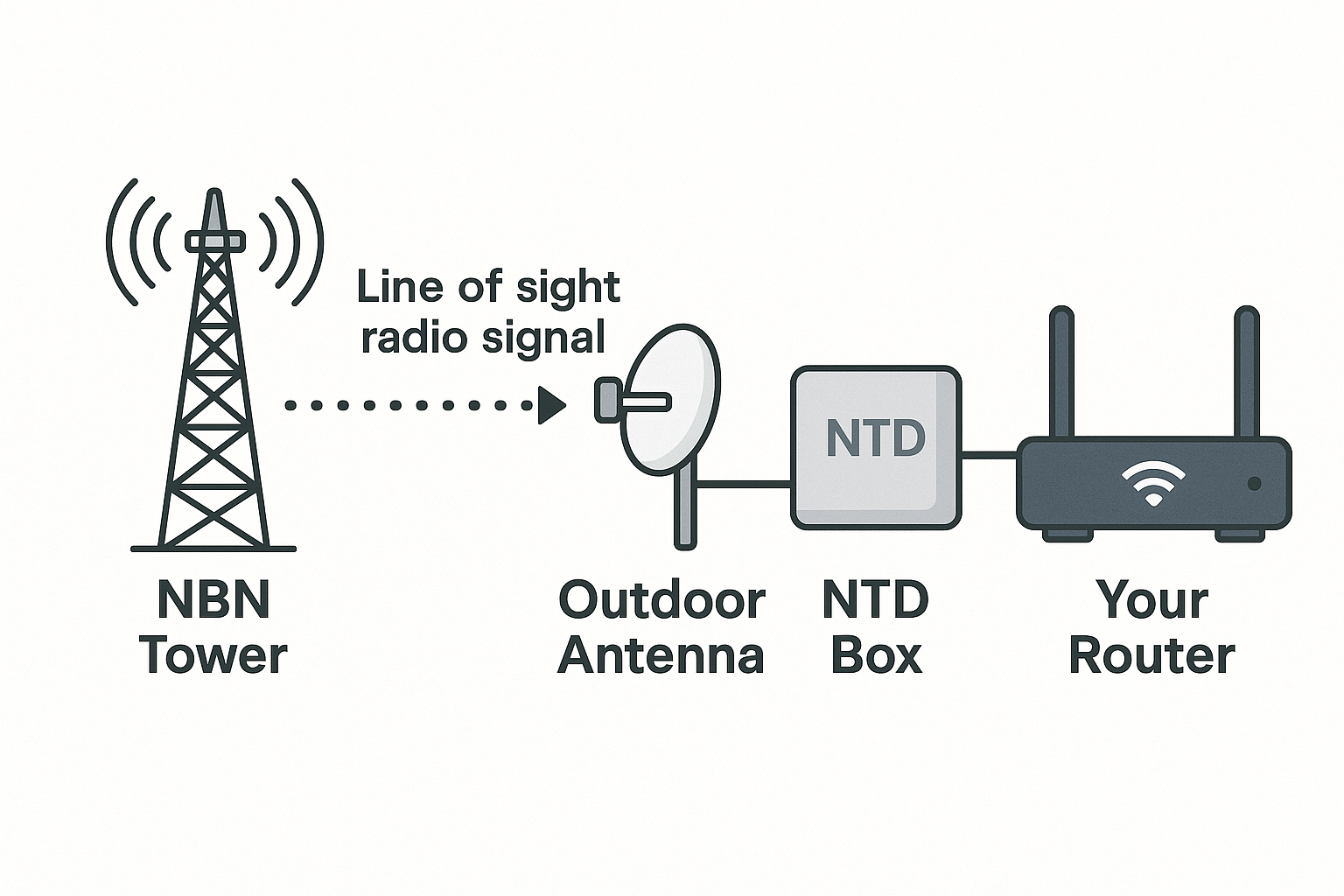

It connects location to the internet using:

• A base station (tower) that beams the internet signal.

• A receiver antenna or dish installed at your premises.

Equipment Needed for NBN Fixed Wireless Internet

1. Outdoor Antenna or Receiver

   • Mounted on roof or wall.

   • Points to a nearby tower for line-of-sight signal.

2. NBN NTD (Modem Box)

• Indoor Network Termination Device (NTD)

3. Indoor Modem/Router

   • Connects to the antenna via Ethernet.

   • Distributes internet to devices via Wi-Fi or LAN.

4. Power Supply & Surge Protection

   • Ensures stable operation and protects against lightning or power surges.

Installation Steps for NBN Fixed Wireless: -

• Site Survey – Technician confirms signal quality and line of sight to nearest NBN Fixed Wireless tower.

• Mount Antenna – Outdoor antenna is securely mounted and aimed at the tower.

• Run Cable Inside – A cable from the antenna runs to your preferred indoor location.

• Install NTD – The Network Termination Device (NTD) is installed and powered inside your home.

• Test Signal – Technician tests connection and ensures signal strength is acceptable.

How to Configure NBN Fixed Wireless

You only need to configure the Wi-Fi router – the NTD is preconfigured by NBN Co.

Setup Overview

Router Configuration Steps: -

1. Connect Hardware:

• Plug Ethernet cable from NTD UNI-D port → Router’s WAN port

• Power on both the NTD and router

2. Access Router Settings:

• Connect a PC or phone to the router (via Wi-Fi or LAN)

• Open a browser and go to:
  http://192.168.0.1 or http://192.168.1.1

• Login (default username/password is often admin/admin or check router label)

3. Select Internet Type:

• Choose "Dynamic IP" or "DHCP"

• Most NBN Fixed Wireless services use Dynamic IP

• If your ISP gave you a username/password, choose PPPoE and enter them.

4. Set Up Wi-Fi:

• Name your Wi-Fi network (SSID)

• Set a strong password

5. Save Settings and Reboot:

• Apply changes and reboot the router

6. Test Connection:

• Try browsing the internet on your device

Fixed Wireless vs. Fiber Internet: -
